16.03.2013, 13:28 | Arnie_one

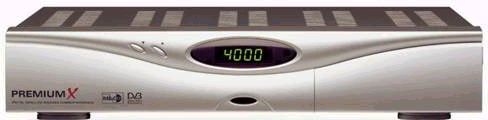

Premium X PVR7000
- HDD 80GB (IDE)
- 2 CI slot
- 1x cryptowork

- cenu nabidnete

4,000 Programmable Channels Memory
8 Favorite Lists with 128 Channels in each list
8 Events ON/OFF Timer(for VCR recording)
Editor for Channel,TP and Favorite List
Dolby Digital Output Supported by Optical connector
SCPC/MCPC receivable from C/KU-band Satellite
LNB Loop-through function
LNB Power Overload protection
LNB Tone Switch 22KHz
DiSEqC 1.2 to control multi LNB
UHF modulator (PAL B/G/I)
2x SCART (TV, VCR) connector
3x RCA cinch for Video and Audio L/R
1x RCA cinch for 0/12V
2x CAM slots for Multi Access
Software download via serial cable (RS-232C)
First Time Installation Menu (Welcome Menu)
EPG for Present,Following, Day and more
Subtitling and Multi Audio Track supported
Toggle between Previous and Current service
Automatic,Manual and Advanced Channel Search
Parental Control Supported
Easy to select List on Banner and any Channel list
Elegant Graphic 256 Color User Interface
Standard and Fine A/V Quality
Picture in Graphic on EPG and etc.
Multilanguage for On Screen Display
4:3, 16:9 with letter box and Pan & Scan



TECHNICAL SPECIFICATION
Transmission Standard DVB, MPEG2
LNB/Tuner input Connector
2x F-Type (Loop Trough)
Input frequency 950~2150MHz Max Current 400mA Max Supply Voltage 13V/18V
DiSEqC 1.0/1.2 RF Impedance 75 ohm
Demodulator
QPSK Symbol rate 2~45Msym/s SCPC and MCPC
Video Decoder MPEC-2 Main Profile / Main Level Data rates Up to 15Mbit/s
Video formats 4:3(letter box) 16:9 Pan & Scan
Audio Decoder MPEC-2 Layer 1&2
System Resource Processor 32Bits (ST20) RAM 8Mbytes Flash ROM 2Mbytes
Resolution 720 x 576 OSD 256 Colors
RF Modulator Output Channel 21 ~69(PAL B/G/I)
Output Signal PAL B/G,D/K.,I
In/Output Connectors IEC169-2 Male/Female Preset Channel 43
TV SCART RGB, CVBS, Audio
VCR SCART CVBS, Audio
Video Output 1 RCA/Cinch
Audio Output 2 RCA/Cinch connectors
0/12V Output 1 RCA/Cinch connector
Digital Audio Output 1 Optical connector
Serial Data 9Pin D-sub RS232C signal Baud rates : 115.2Kbaud max
Conditional access system Twin PCMCIA interface for a Common Interface CA module (DVB Standard)
Remote Control Type NEC Operating distance 10 meters Batteries 2 x 1.5V AAA
Front Panel 4 digits 7 segment display
3x buttons on front panel
2x PCMCIA slots with removal buttons IR Sensor
General Data Operating Temperature 10? to 45? Storage Temperature 40? to +70?
Supply Voltage 90~250VAC 50/60 Hz
Power Consumption Max.25 Watts At 400mA LNB Load
Power Consumption in Stand-by 6 Watts
Dimension (WxDxH) 340x240mmx60mm Weight 1.87Kg
