4 x 40W @ 4 ohms (12V)
4 x 55W @ 4 ohms (13.8V)
4 x 110W @ 2 ohms (13.8V)
2 x 160W @ 4 ohms bridged (13.8V)
Fuse: External 30A
Ešte poctiva USA vyroba, čo sa tyka mechanickeho stavu je problem s prepinačom SELCT X-OVER SUB-nedrži polohu, nema vplyv na zvuk.
Bohužial 4kanal mi je zbytočny nakoniec, inak by som si ho nechal.
cena 130eur, nožna dohoda.

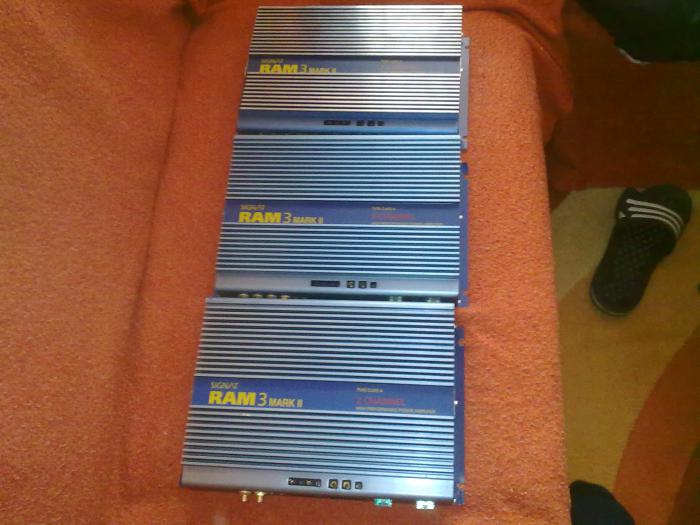

SIgnat RAM3 MKII.
SIGNAT RAM3 MKII
Amp type: 2 channel
Pc board: double sided gold-plated 24 K
Power terminal: gold plated fully isolated type
Speaker terminals: gold plated fully isolated type
Signal input terminals: 2 x RCA jacks gold plated
BIC balanced input circuity
Bridged mode: yes (min. 2 Ohm)
Trimode operation: built in
Protection and control circuites: Temperature, overload, short circuit,
DC offset
Output load impendance (stereo mode): 1 - 8 Ohm
Active low pass filter: 50-250Hz, 12dB (ch 1/2)
Active high pass filter: 50-250Hz,12dB (ch 1/2)
Line output: 2 x RCA jacks gold plated, full range
Technical data:
Max. peak music power: 500W
RMS power at 4 Ohm (0,05% THD): 2x150W
RMS power at 4 Ohm, bridged (0,1% THD): 1x450W
RMS power at 2 Ohm (0,2% THD): 2x230W
RMS power at 1 Ohm (0,2% THD): 2x240W
S/N ratio (A-weighted): 105 dB
Freq. response (-3dB): 10-65 kHz
Stereo separation: 70 dB
Input sensitivity: 100mV - 4V
Input impendance: 20 kOhm
Fuse rate: 2 x 30A
Supply voltage: 12 V DC
Dimensions: 230 x 57 x 300 mm
technicky stav 100percent, nejake povrchove škrabance, nič velke. Fotky zašlem na požiadavku, mam ho v aute namontovany. Uplne spodny kusok.
cena: 120eur.
na foto uplne dole.

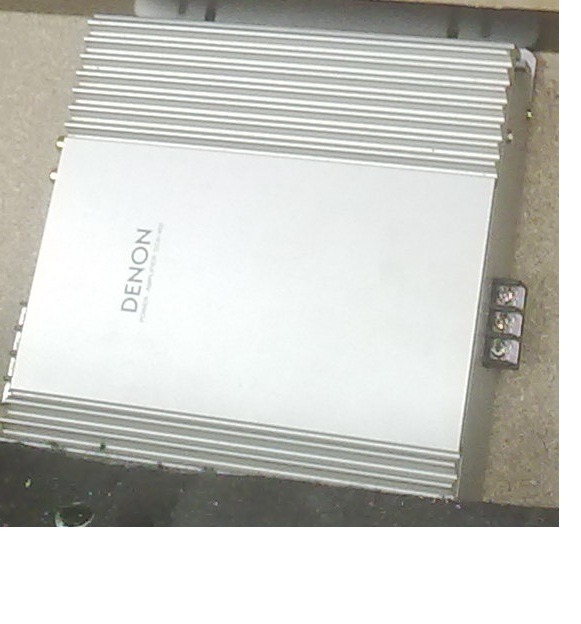

DENON DCA450
2x 50 Watt ( 1Khz/4 Ohm, 1%Klirr)
2x 40 Watt ( 20hz- 20Khz/ 4 Ohm, 0,04% Klirr)
Mono: 110 Watt ( 1 khz/4 Ohm, 1% Klirr)
Frequenzgang: 5 Khz-100khz (-3db)
Geräuschspannungsabstand: 100 db
Eingangsimpedanz: 100 mV bis 2 Volt(variabel/10k Ohm)
Gewicht: 2,2 kg
Vhodny na slabšie kompa, pripadne do aktivu na vyšky/ streďaky.
cena:70eur.
13.08.2011, 12:56 | db-marek | Upraveno: 2011-08-13 13:03:15
